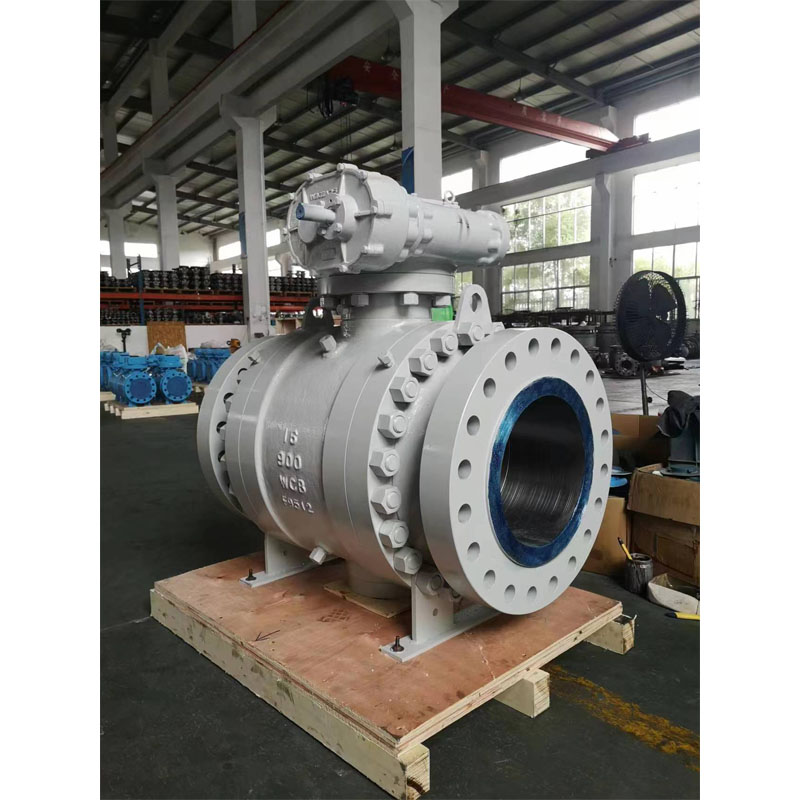

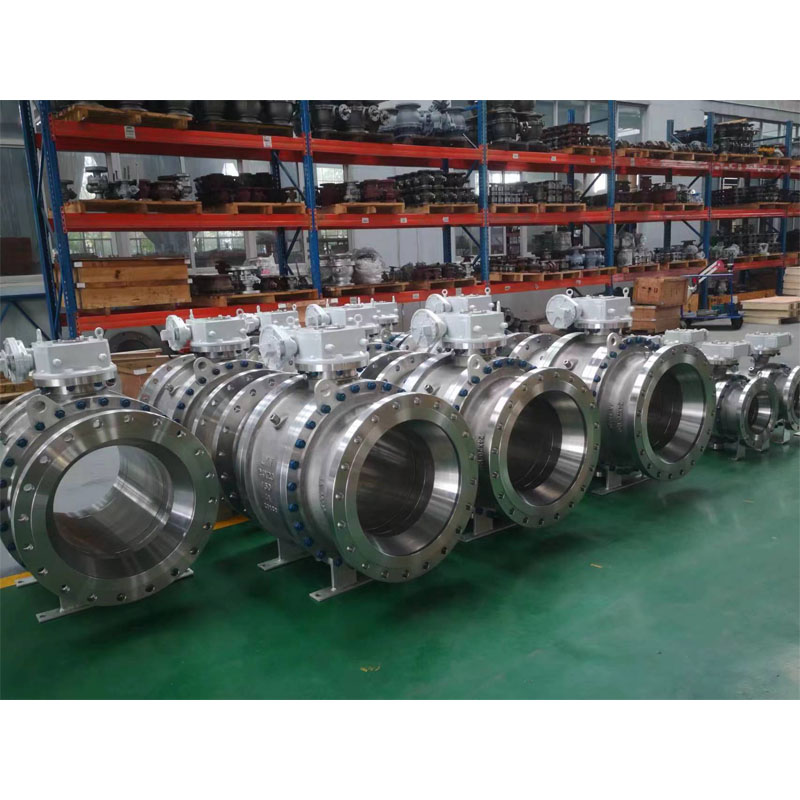

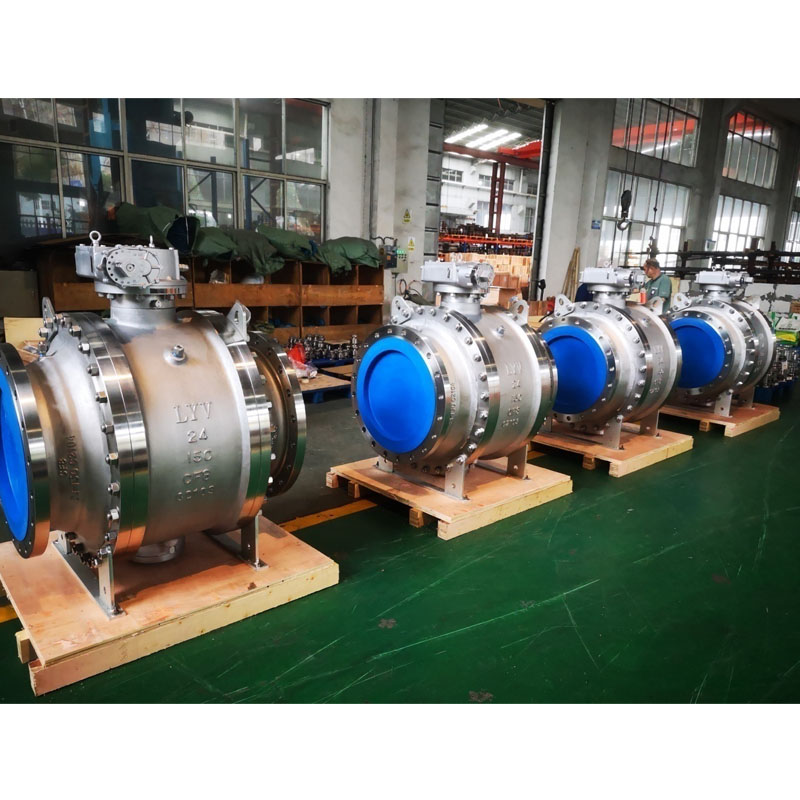

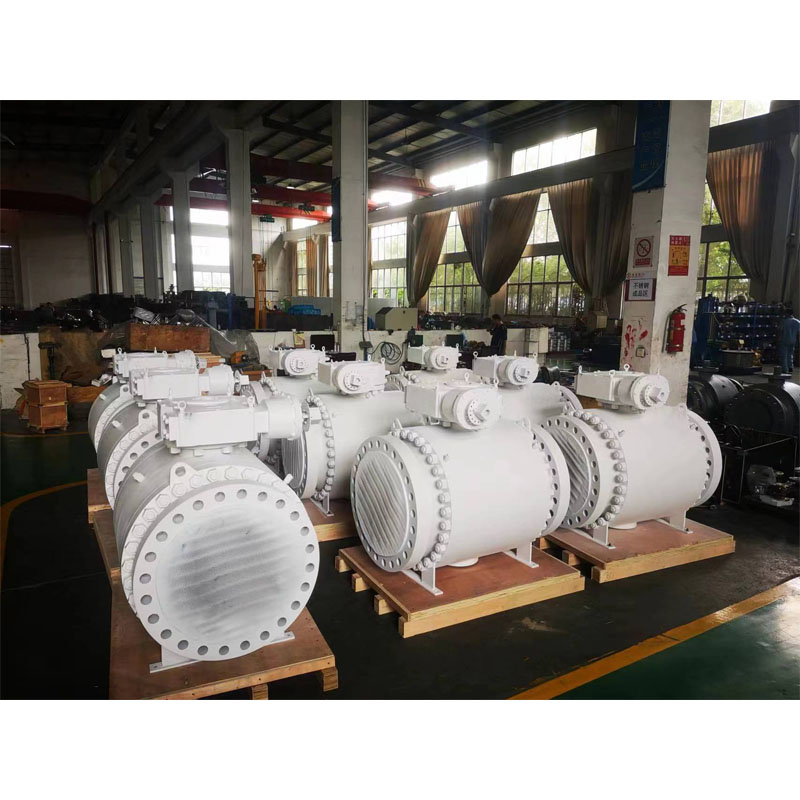

Api 6d Ball Valve

Ang LYV ay isang propesyonal na industriyal na Api 6d Ball Valves na manufacturer, na nag-e-export ng iba't ibang valves sa American, Canadian, Southeast Asia, Russia, at Middle East atbp. Gamit ang mga CNC equipment at skilled worker, makakagawa kami ng higit sa 50,000pcs API 6D valves bawat taon , umasa na maging supplier na mapagkakatiwalaan mo.

Disenyo at Pagsubok International Standard ng Two piece ball valve/ Three piece ball valve

Pamantayan sa Disenyo : ASME B 16.34 /API 6D

Pamantayan sa Inspeksyon at Pagsubok : API 598/ API 6D

Pamantayan sa Pagsubok na Ligtas sa Sunog : API 607/API 6FA

Flange To Flange Length : ANSI B 16.10 -Maikling pattern/ Mahabang pattern

End Connection : Flanged End to ANSI B 16.5, Butt Weld ends, Stock Weld ends.

Laki ng Tagagawa at Saklaw ng Presyon:

NPS 1/2” hanggang 48” (para sa ANSI Class 150LB)

NPS 1/2” hanggang 48” (para sa ANSI Class 300LB)

NPS 1/2” hanggang 48” (para sa ANSI Class 600LB)

NPS 1/2” hanggang 36” (para sa ANSI Class 900LB)

NPS 1/2” hanggang 24” (para sa ANSI Class 1500LB)

NPS 1/2” hanggang 12” (para sa ANSI Class 2500LB)

Pipe Bore: Full Bore (FB)/ Reduce Bore(RB)

Katawan ng Konstruksyon: Side Entry

Bonnet/Uri ng takip: Bolted Bonnet/Extended Bonnet

Uri ng Upuan: Malambot na uri /Hardseal Metal Type

Direksyon sa Daloy: Uni-Directional/Bi-Directional

Daluyan ng Serbisyo: Natural Gas, Langis, Tubig, Oxygon gas, atbp

Serbisyo: SOUR, ISO 15156/ NACE MR0175

Tampok: Disenyo ng Fire Safety

Anti-Static na Disenyo

Blow-out Proof Stem

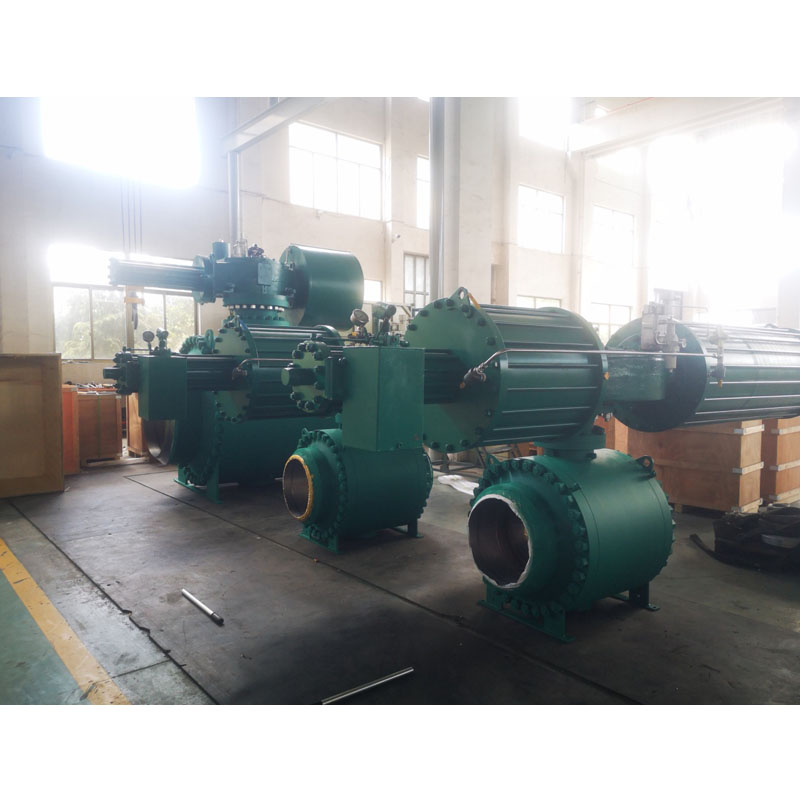

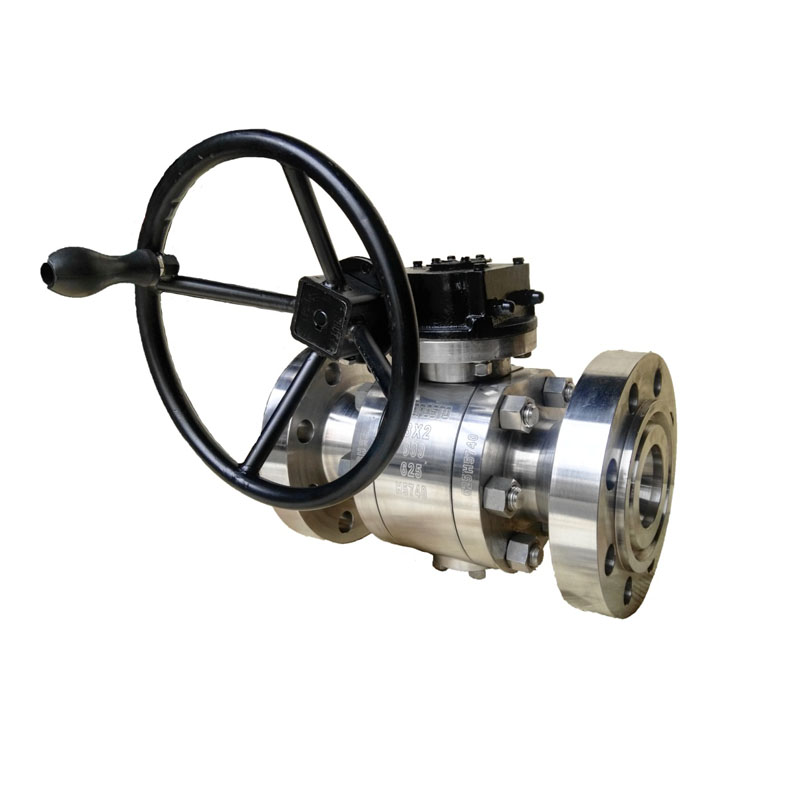

Operasyon ng Valve: Manual Lever / Worm-Gear /Actuator Operated/ Pneumatic Actuator / Electrical Actuator

MOC (Bill of Material – BOM):

Katawan at Bonnet: ASTM A 216 GR. WCB /ASTM A105N (Carbon steel)

: ASTM A352 LCB / LCC /ASTM A350 LF2 (Mababang temp. carbon steel)

: ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316) (Stainless Steel)

:ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L) (Stainless Steel)

: ASTM A351 Gr. CF8C

: ASTM A890 4A / 5A/ 6A (Duplex Stainless Steel)

Solid Ball : ASTM A105N+ENP/ A105N+TCC

: ASTM A 182 F304 / F316 (SS 304 / SS 316)

: ASTM A 182 F304L / F316L (SS 304L / SS 316L)

: ASTM A 182 F347

: ASTM A182 F51/ F53 /F55

Tandaan: Harseal Metal Seat type Ball surface treatment: ENP, HCR, WC, welding Ni60/ Ni55

Stem : ASTM A182 F6a

:ASTM A182 F304 / F316 / F304L / F316L

:17/4 PH

: ASTM A182 F51/ F53/ F55

Ball Seat at Body Seal : PTFE Virgin / 25% Glass Filled PTFE – GFT / Carbon Filled PTFE – CFT

: SILIP / Delrin / Grafoil – Graphite Ring

Gland Packing : PTFE Virgin / 25% Glass Filled PTFE – GFT / Carbon Filled PTFE – CFT

: Grafoil – Graphite Ring
